EM100Pro-G2 este un emulator integrat de memorie DRAM de mare viteză DediProg SPI NOR pentru a oferi cele mai bune performanțe de actualizare a codului. Acest instrument avansat a fost proiectat în strânsă cooperare cu furnizorii SPI NOR Flash pentru a emula comportamentul tuturor SPI NOR Flash de pe piață și, de asemenea, următoarea generație SPI NOR Flash.
Feature
EM100Pro-G2 is DediProg SPI NOR Flash emulator integrated high-speed DRAM memory to offer the best code updating performances. This advanced tool has been designed in close cooperation with the SPI NOR Flash suppliers to emulator the behavior of all the SPI NOR Flash on the market and also the next generation SPI NOR Flash.
It provides engineers with a flexible development and testing tool for any embedded project that uses an external SPI NOR Flash. It provides quick, in-circuit firmware test cycles during development.
EM100Pro-G2 increases productivity by downloading firmware code or data into the emulator in a few seconds for density as large as 512Mb. In addition, it provides "SPI BUS Analyzer" feature by collecting all the SPI command and data on the SPI bus in order to help the debugging process.
It will speed up your firmware development and testing by eliminating the need to remove-erase-program and re-install SPI flash each time you test a code change.
If you want to stop the "program/insert/boot/remove/erase" cycle, then this is the tool for you.
Highlights
- Emulate all the market SPI NOR Flash in one click
- Support up to 2Gbit SPI NOR Flash emulation
- Support Single IO, Dual IO, and Quad IO
- QuadIO supports SPI CLK up to 50MHz
- Automatically switch 3.3V or 1.8V according to IC voltage specifications
- Built-in 512MB Buffer, supporting a larger number of SPI Trace log storing.
- Dual-color LED status indicator
- Support 4-byte address mode option
- Provide option to use CS1 or CS2
- Extra debugging function: SPI bus trace and HyperTerminal
- Update code in less than 3 seconds
- USB powered & palm size
- Support Windows 2003 and above & Support both 32 bit or 64 bit OS
Model | EM100Pro-G2 | EM100Pro |
Internal memory | DDR DRAM | SDRAM |
Buffer size For SPI Trace | 512MB | Limited |
Emulation Capacity | Up to 2Gbit | Up to 512Mbit |
Emulating IC concurrently | One IC only with CS1 or CS2 | One or two ICs |
Quad IO Support | Up to 50MHz | Slower |
1.8V / 3.3V FW | Swap automatically by IC model | Need re-plug |
SPI Bus activity indicator | Dual color LED indicator | No |
Benefits
- Minutes become seconds for SPI NOR Flash code update (3 seconds to update 2Gbit code)
- Save up to 1 hour every day for your development and reduce your time to market
- Debug efficiently your application through the available SPI bus with our SPI Trace, SPI Trigger, SPI Hyper Terminal for debug messages
- Develop your own application debugger via our bidirectional SPI Hyper terminal and control application from your host PC
- EM100Pro-G2 can connect with Intel motherboard by specific adaptor ISP-ADP-Intel-C (Option).
Performance (Erase+Program+Verify)
Density | Programmer | EM100Pro-G2 |
8Mb | 9s | 3s |
16Mb | 13s | 3s |
32Mb | 16s | 3s |
64Mb | 38s | 3s |
128Mb | 75s | 3s |
256Mb | 115s | 3s |
512Mb | 200s | 3s |
1Gb | N/A | 3s |
2Gb | N/A | 3s |
*The compare data of programming speed is according to DediProg SF600 SPI Flash programmer.



Hardware
The EM100Pro-G2 has two 2.54mm pitch males connectors of:
- 2x2 for the Reset and Trig signals
- 2x10 for the Emulation signals
EM100Pro-G2 is designed with ISP header, through different cables/adaptors, it can connect to the PCB board directly. Please refer to Table 1 for EM100Pro-G2 2x10 header pin out.
DediProg also provides the EM100Pro-G2 ISP Cable which is used to connect the EM100Pro-G2 programmer to the 2X5 2.54mm ISP Pin Header on board, please refer to Table 2 for the EM100Pro-G2 ISP Cable 2x5 pin out.
Table 1: EM100Pro-G2 ISP Header Pin Out (2x10),(2x2)
1 | NC | CS2 | 2 |
3 | CS1 | Vcc | 4 |
5 | MISO/DQ1 | Hold/DQ3 | 6 |
7 | Wp/DQ2 | CLK | 8 |
9 | GND | MOSI/DQ0 | 10 |
11 | 3.3V | NC | 12 |
13 | CTRL | NC | 14 |
15 | CTRL | 3.3V | 16 |
17 | CTRL | CTRL | 18 |
19 | GND | NC | 20 |
1 | GND | Reset | 2 |
3 | GND | Trig | 4 |
Table 2: ISP Cable Connector Pin Out (2x5)
1 | NC | CS2 | 2 |
3 | CS1 | Vcc | 4 |
5 | MISO/DQ1 | Hold/DQ3 | 6 |
7 | Wp/DQ2 | CLK | 8 |
9 | GND | MOSI/DQ0 | 10 |

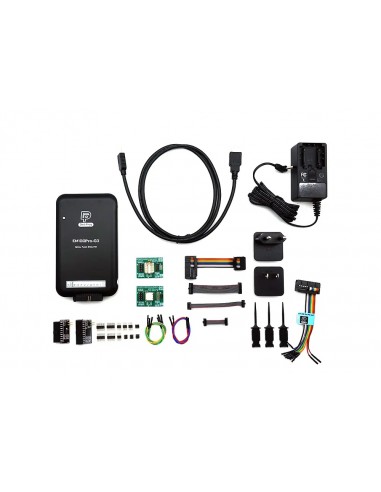

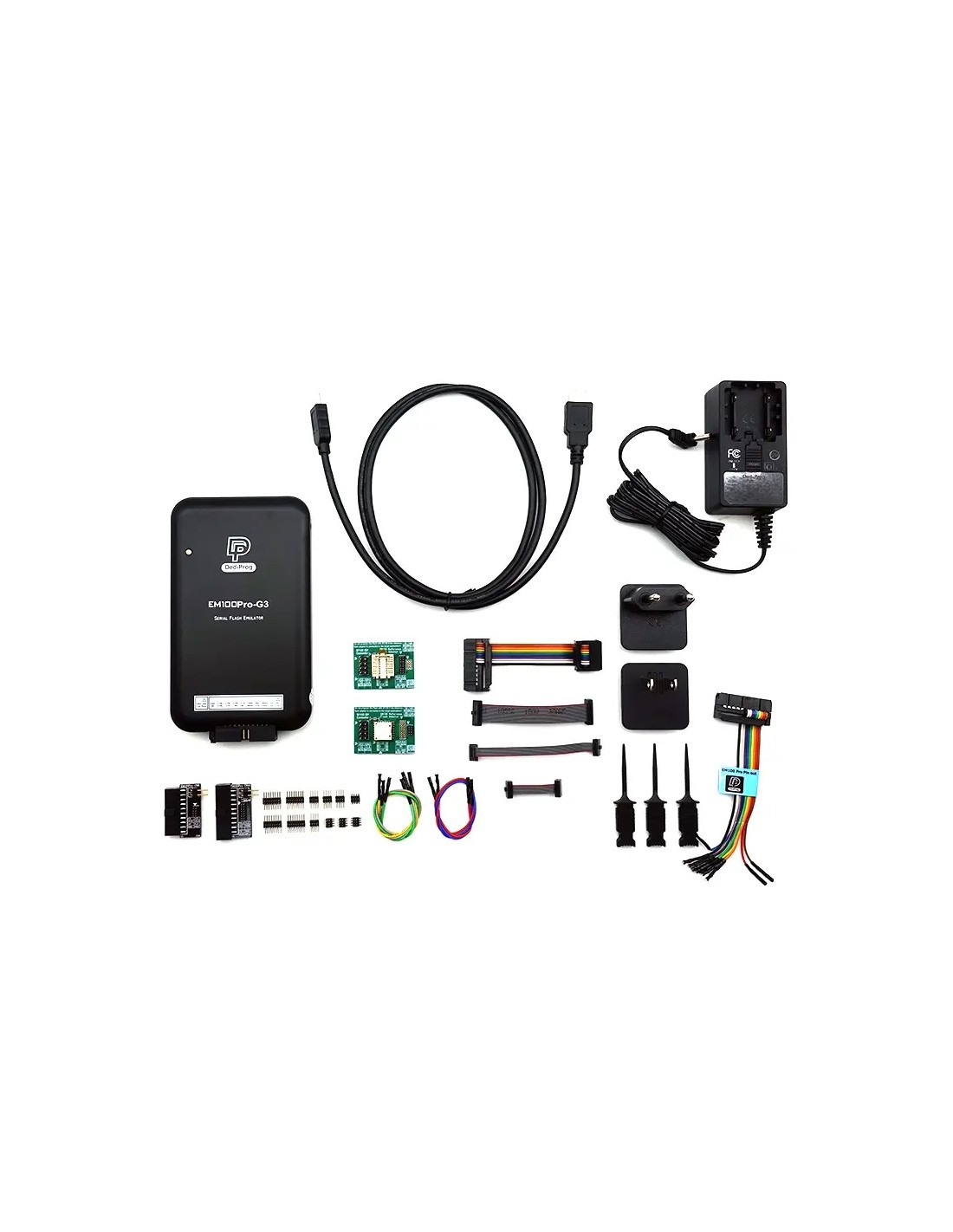

Standard Package
- EM100Pro-G2 x 1
- USB 2.0 cable x 1
- AC switching power adapter x 1
- 2.54mm 2x10 to 2.54mm 2x5 cable x 1
- 1.27mm 2x4 to 1.27mm 2x4 cable x 1
- 1.27mm 2x4 to 1.27mm 2x4 cable 2.5cm x 1
- 1.27mm 2x8 to 1.27mm 2x8 cable x 1
- 2.54mm 2x10 to 1.27mm 2x4/2x8 SO connection adaptor x 1
- 12cm EM100Pro split cable with grabber clip x 1
- EM100Pro DIP cable x 1
- 1.27mm 2x8 SMT male header (10.3mm) x 4
- 1.27mm 2x4 SMT male header (6.0mm) x 4
- 1.27mm 2x4 SMT male header (10.3mm) x 4
- 15cm single wire with 2.54mm Dupont head x 5
- EM100Pro Reference Flash Adaptor (SO8W) x 1
- EM100Pro Reference Flash Adaptor (SO16W) x 1
- Grabber Clip x 2
- CD-ROM (Included Software and user manual) x 1
