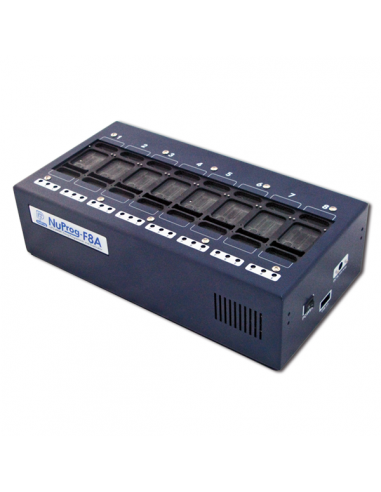

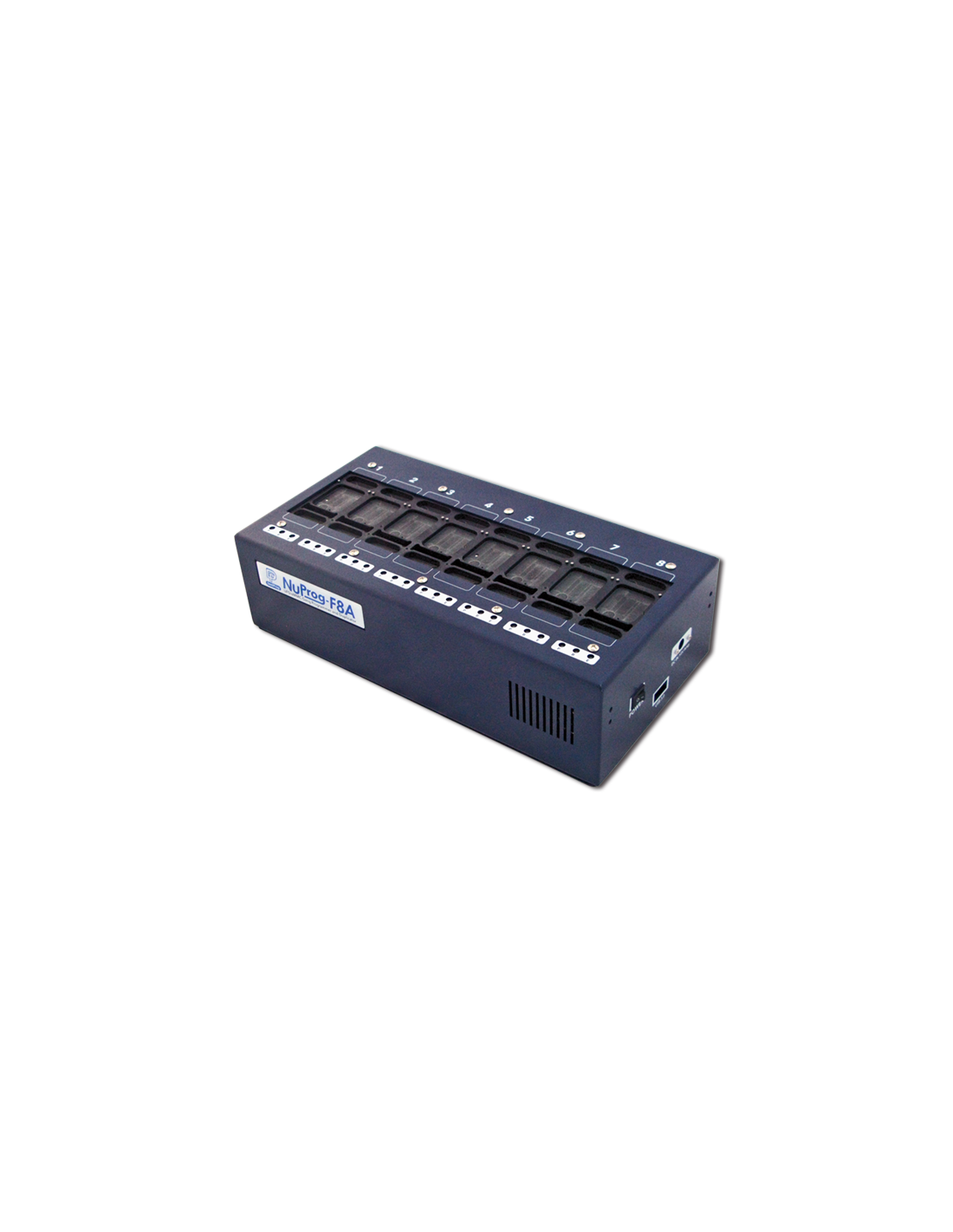

NuProg-F8A UFS/eMMC Gang Programmer and Duplicator (No LCD)

Request a quote!

Model Name : NuProg-F8A

For sale information : contact@progtech-store.com

Description
Reviews

Feature

NuProg-F8A is the new generation UFS/eMMC gang duplicator. Support UFS v2.1 and eMMC v5.1 storage IC. All new design architecture makes the machine into the compact size. NuProg-F8A supports multiple machines in one PC. User can duplicate the IC from NuProg-E to several NuProg-F8A for small volume production demand.

Data Transfer Speed is at 180MB/s max. The real read/write speed depends on various factors such as communication protocol, chip controller performance, and NAND technology, etc.

Highlights

Support UFS v2.0/v2.1 and eMMC v5.1 storage IC
UFS duplicating supports LUN configuration and Descriptors/Attributes/Flags. (Not support RPMB duplicating)
eMMC duplicating supports boot area, GPP, user area, and enhanced mode. (Not support RPMB duplicating)
Each NuProg-F8A provides 8 slave socket sites, all slaves socket sites can work concurrently

Time Reference:

Test Data Size: 8G Bytes

IC Type	IC P/N	Write Speed	Read Speed
UFS	SDINDDH4-64G	90 MB/s	151.7 MB/s
	KLUDG4U1EA-B0C1	146.3 MB/s	151.7 MB/s
	H28U88301AMR	124 MB/s	141.2 MB/s
	THGAF8G9T43BAIRB	91 MB/s	151.7 MB/s
eMMC	MTFC32GAKAECN-3MWT	68.3 MB/s	83.6 MB/s
	KLM8G1GETF-B041	58.5 MB/s	86.2 MB/s
	SDINBDA4-32G	67.1 MB/s	86.2 MB/s

Copy Mode

Execute copy function with NuProg-E

Standard Package

NuProg-F8A x 1
USB 3.0 Cable x 1
Power Cable x 1
CD-ROM x 1
