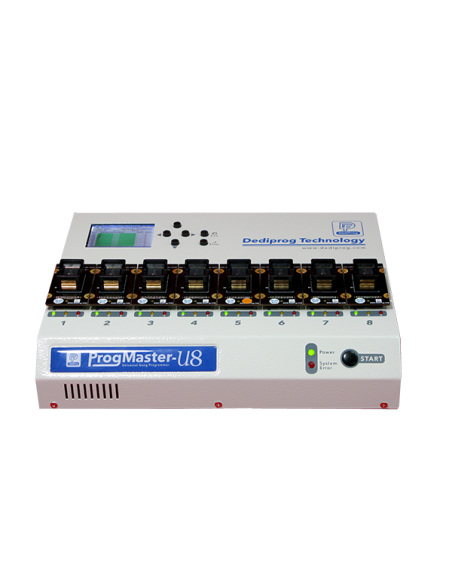

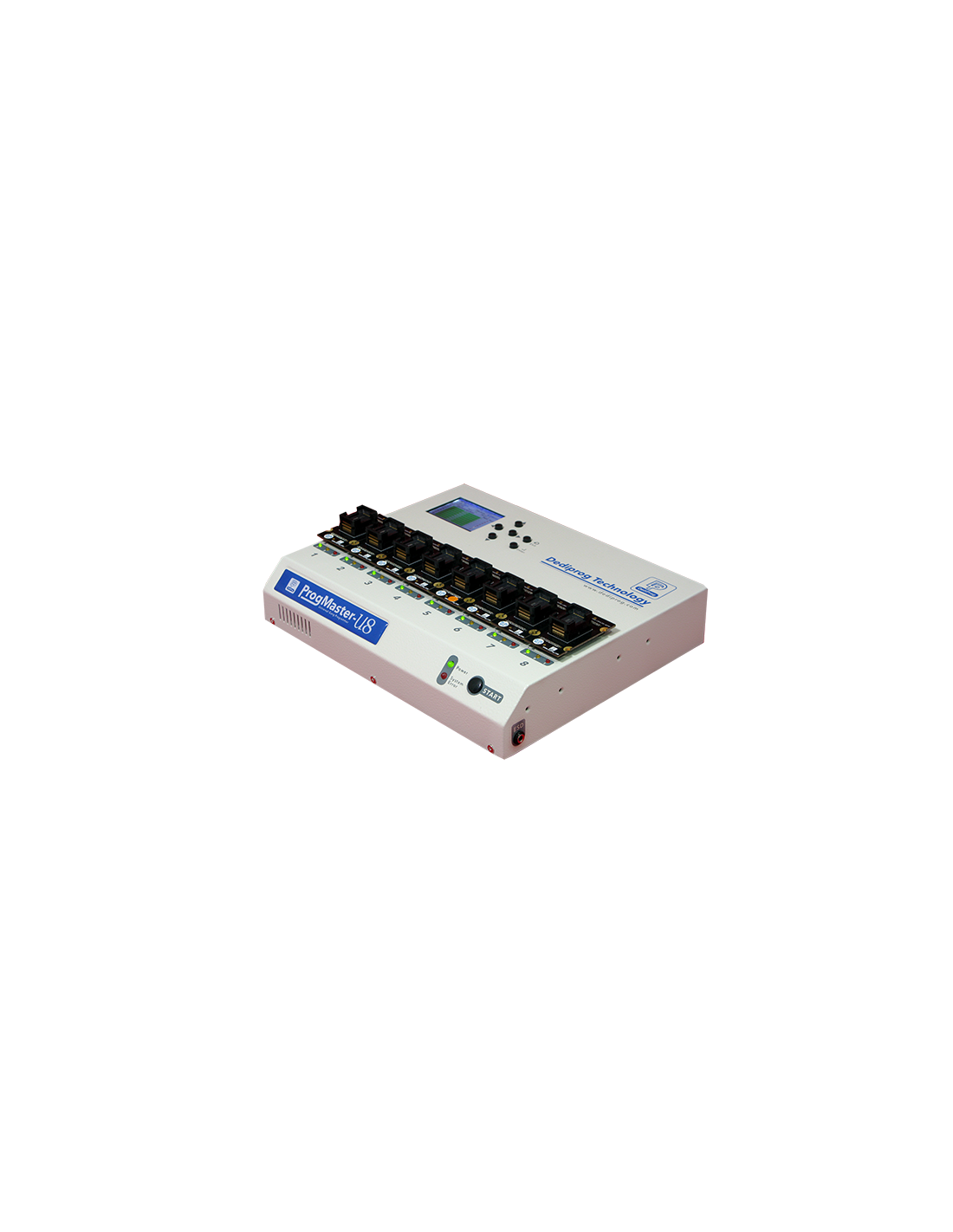

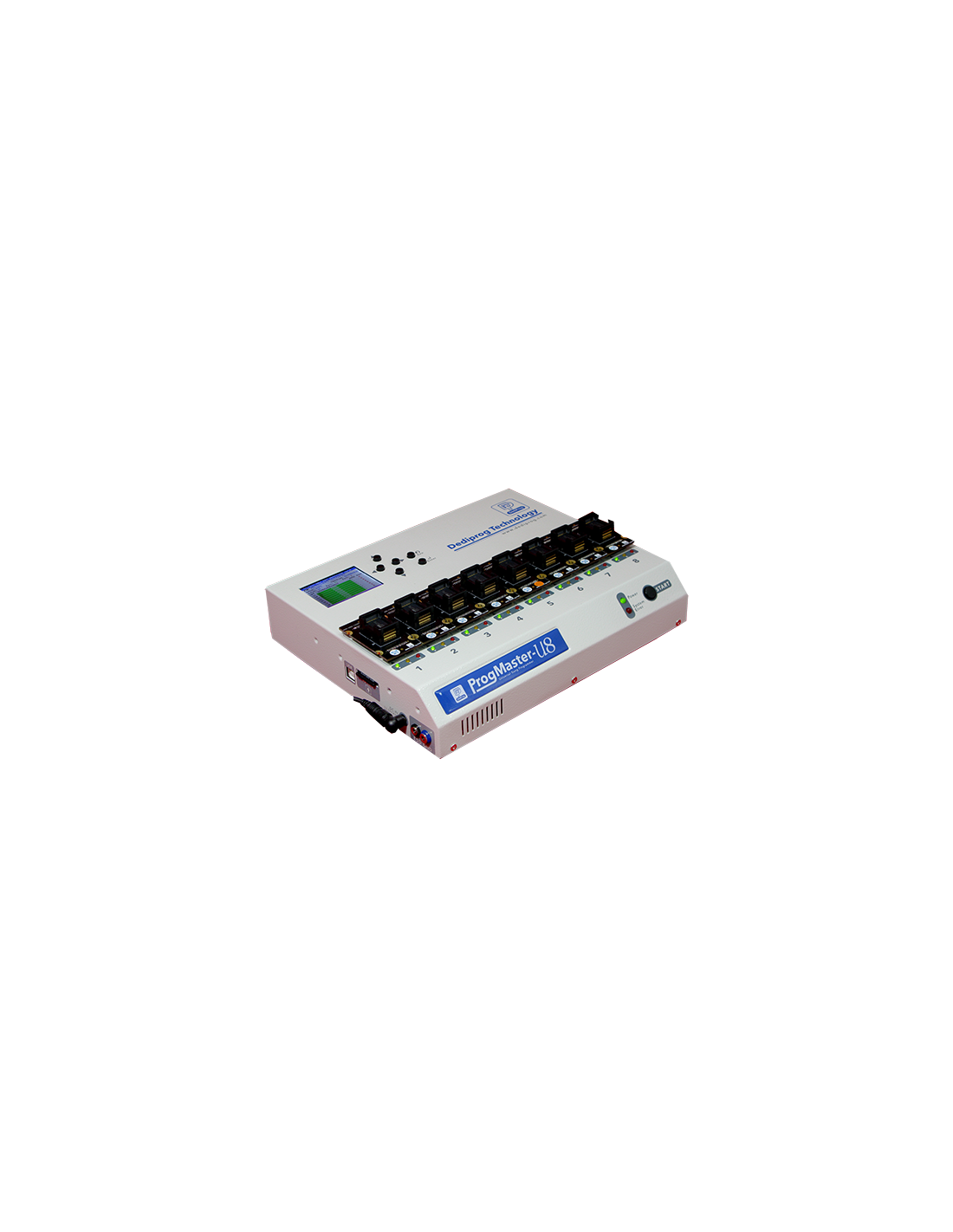

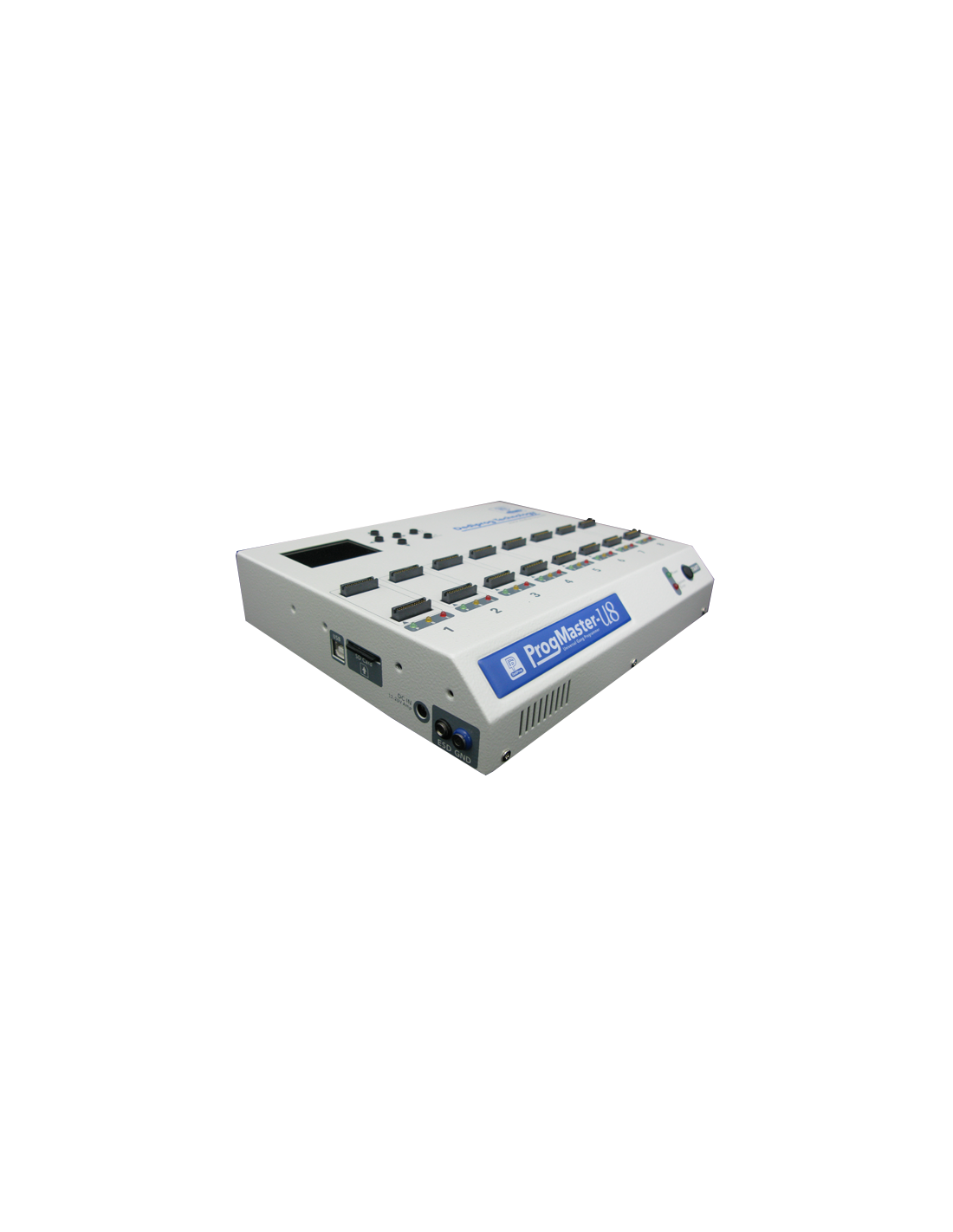

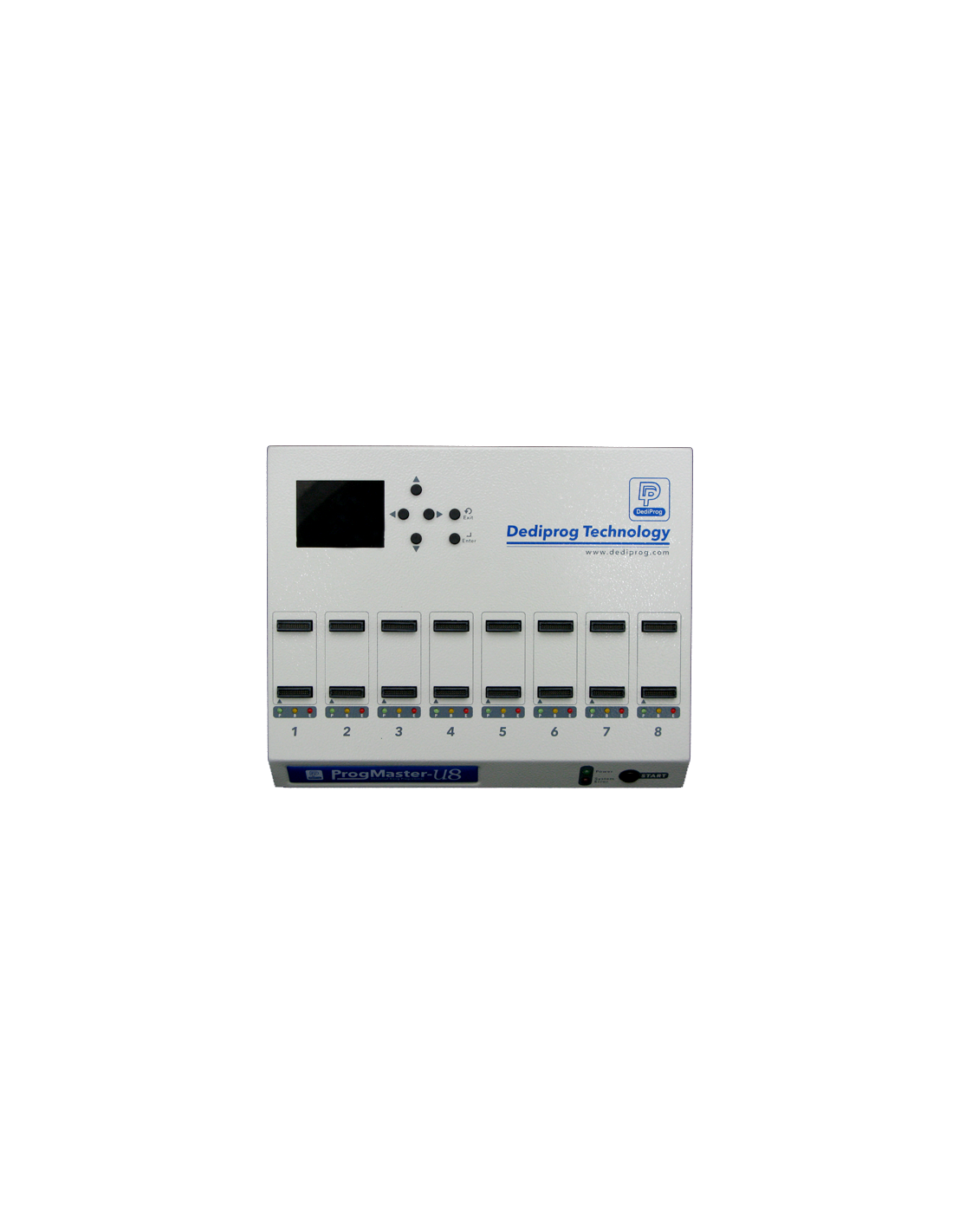

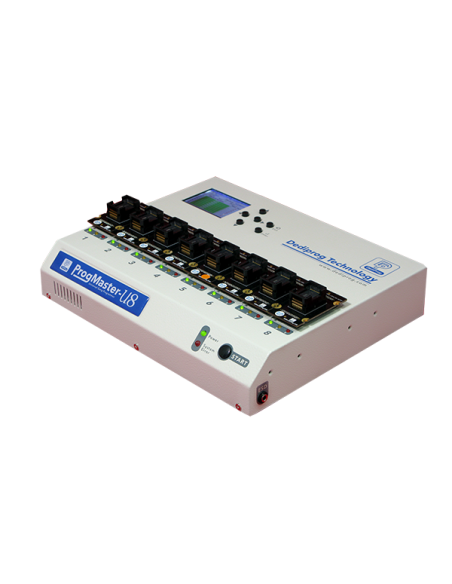

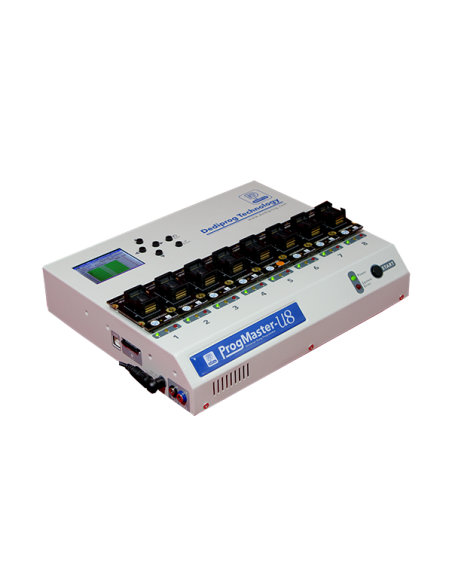

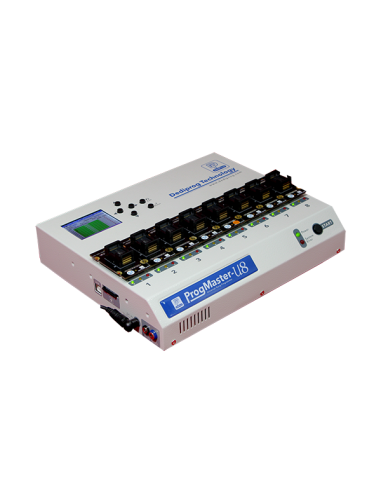

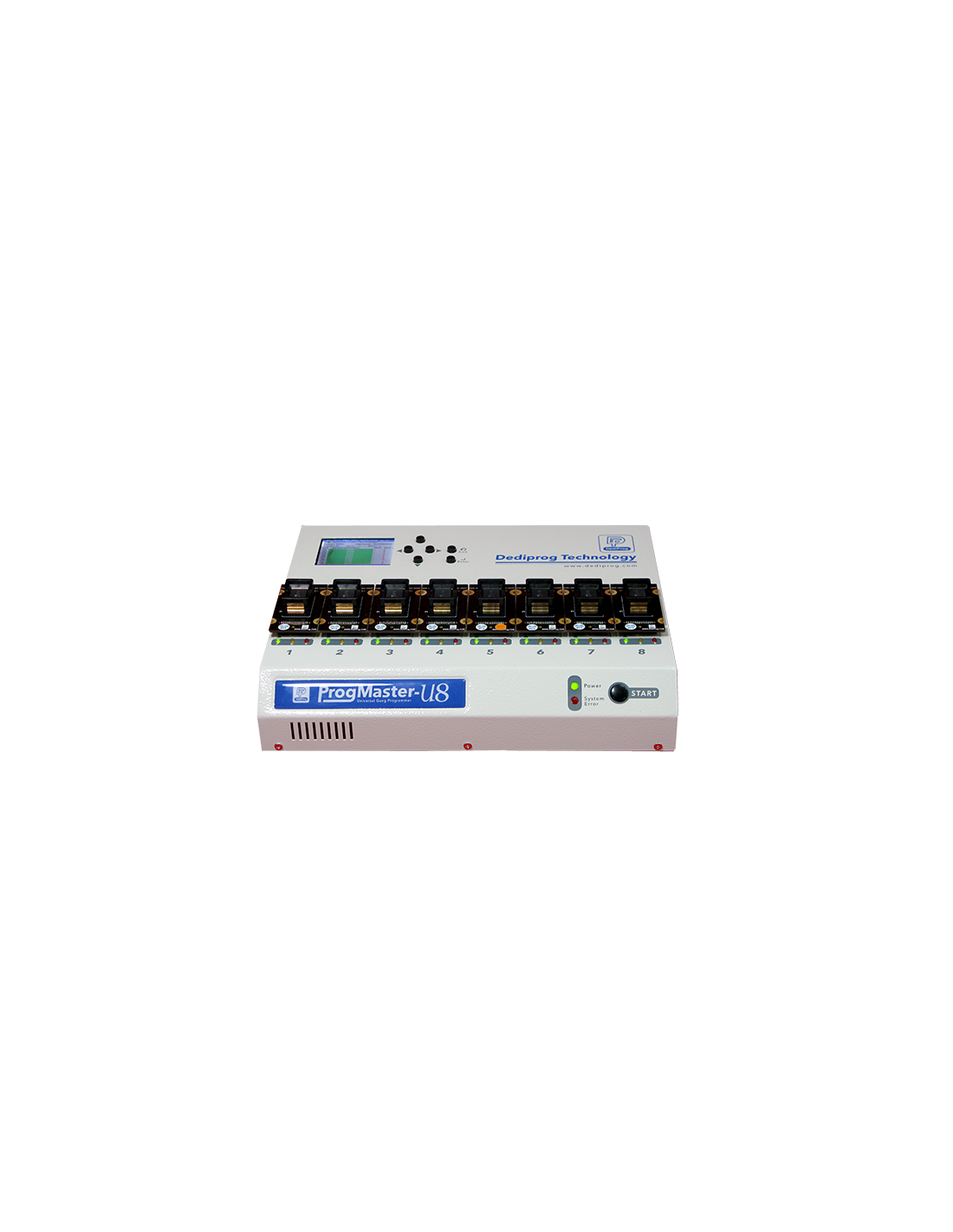

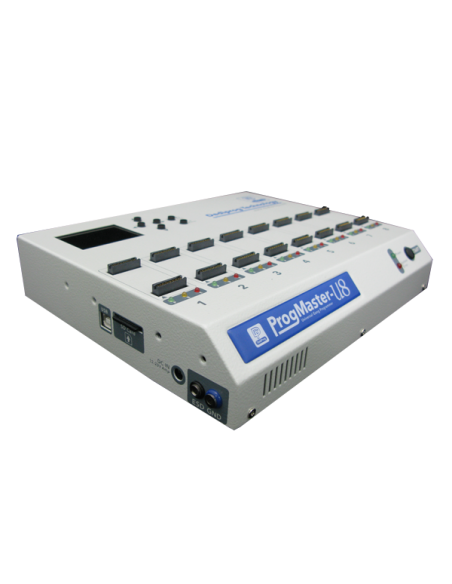

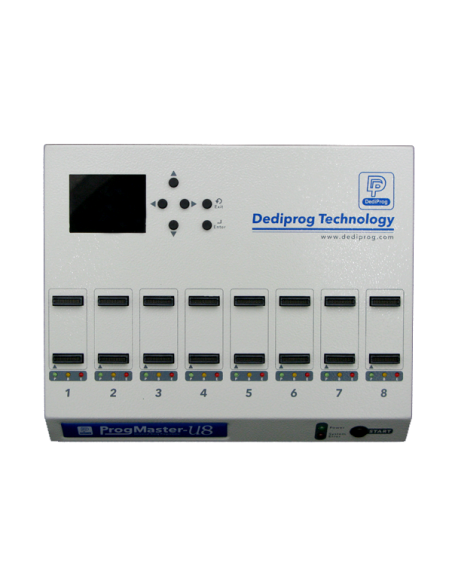

Model Name : ProgMaster-U8
ProgMaster-U8 is a universal gang programmer, allows you to program 8 IC at a time and able to program various IC kinds!


ProgMaster-U8 is a gang programmer with ultra high speed, which supports all IC families on the market. Equipped with 8 programming sites with an LCD keypad that allows stand-alone function. ProgMaster-U8 has been designed and optimized to reach IC maximum performances without compromise on the programming quality, stability, and reliability and making it the best value for mass production.



  • High programming speed
    • Built-in high-speed processor to achieve high programming speed.
Timing Reference (P+V)
MX25L1655D 8s
S29GL064S 16s
S34ML01G200T 48s
STM32F302CCT 9s
ST BlueNRG-132 21.5s


  • Completely support all IC families and packages
    • EEPROM, MCU, SPI NOR/NAND Flash, Parallel NOR/NAND Flash, eMMC/eMCP, CPLD, FPGA...etc.
    • DIP, SOP, SSOP, TSOP, PLCC, QFN, BGA...etc.
    • Regular software update.


  • Software supports NAND FLASH skip Bad Block and partition programming.


  • Built-in memory card slot for project programming
    • Able to save project file to SD card for more stable and faster transmission.


  • One computer can connect to multiple ProgMaster-U8 at the same time.


  • Stand-alone function allows you to program without a computer and only need to select and start the project programming through LCD keypad.


  • Exclusive design for productivity improvement
    • You can start programming once the project file is loaded; it will also avoid the human errors when importing the project file or the IC models.
    • Three advanced working modes:

A. Manual Mode: Press “Start Button” to execute programming after inserting IC in all sockets.
B. Auto Detection Mode: Each socket works independently. Programming is executed instantly after inserting IC to socket.
C. Handler Mode: Use in the DediProg auto handler system.

ProgMaster-U8 with Hand Press Fixture: It helps you to push down 8 sockets easily and simultaneously.
Engineering Mode
For engineers and expert to access advanced features for development, repairing etc.
Production Mode
For operators in production to control multiple sites and improve the throughput.
Standard Package
  • ProgMaster-U8 x 1
  • USB Cable x 1
  • Power Cable x 1
  • 32GB SD Memory Card x 1
  • CD-ROM x 1( Included Dediware software and user manual)


Optional Purchase
  • Socket Adaptor
  • 64GB SD card
