Masina de impachetare semi-automata pentru role SMD DP600-A

Stoc epuizat
Request a quote!
Semi-Auto Taping Machine este un modul folosit la impachetarea circuitelor integrate pe rola.
Pentru informații de vânzare contactaține la adresa de e-mail:
Numele modelului: DP600-A

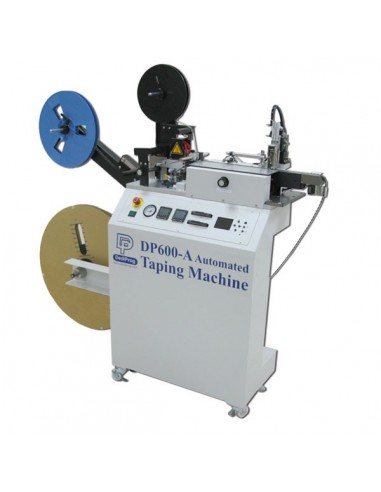

DP600-A is a new generation Automated taping machine, which is designed to be simple and easy operated; tape width adjustment can be finished within 10 seconds without any tool. DP600-A supports devices packaged in 8~88mm width tape. With advanced characteristics, DP600-A offers the best solution for the manufacturing process.



  • Mechanical Accuracy +/- 0.04 mm.
  • Support up to 22" (550mm) input and 13" (330mm) output tape reel.
  • Supported 8~88 mm width cover tape
  • Supported 32 mm depth carrier tape.
  • RS232 interface easily communicates with third party automated system.
  • PSA (Press sensitive adhesive) and heat sealing.
  • CE Certificate.

Checking Systems

  • Cover Tape Sensor: The sensor will alarm when running out of cover tape.
  • Empty Pocket Sensor: Check if each pocket has carried an IC.
  • Floating Chip Sensor: Check the floating IC.
  • Carrier Tape Sensor: The sensor will alarm when running out of cover tape.


High Compatible

DP600-A is fitted with RS232/IO port for easy integration with the most automated system.
It has optional IC marker and CCD inspection devices thus allow DP600-A not only support automated system integration but also benefits the quality assurance, marking and packaging procedures in a production line.

2D Inspection System
Use CCD to check IC Appearance
Ink Marker
Stamp dot, number or letter on the IC with different colors.
Standard Package
  • DP600-A Main Unit x 1
  • User Manual x 1


Optional Accessories
  • Ink Marker
  • 2D Inspection System
